Overview

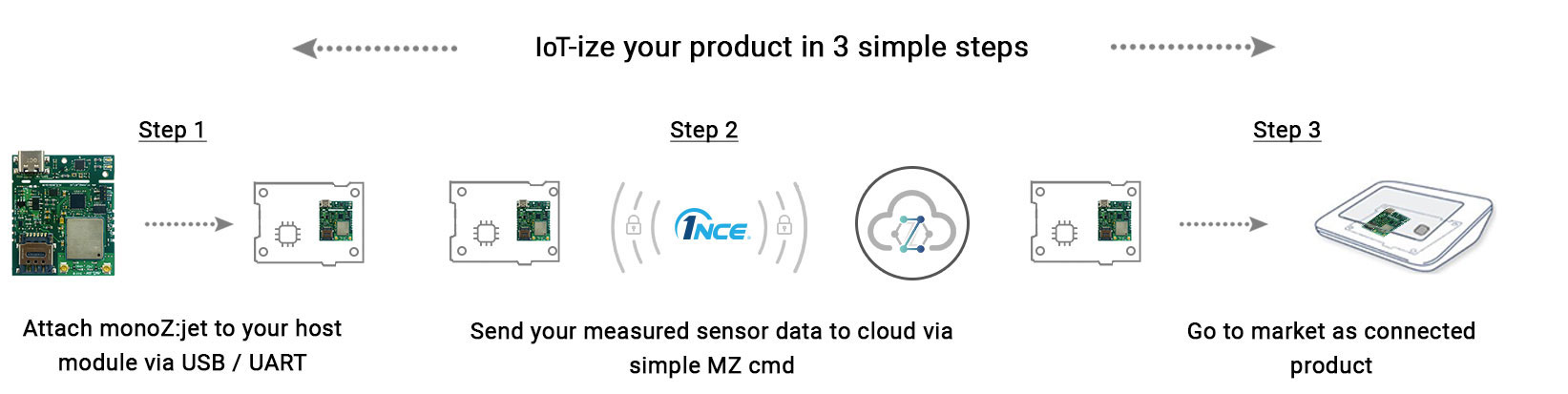

monoZ:Jet is a compact solderable System-on-Module designed to provide secure LPWA connectivity for your system. With its small 32.5 x 35 mm form factor, monoZ:Jet can seamlessly integrate into your product design, enabling immediate connectivity to monoZ:Link via 1NCE. Together with monoZ:Link platform, monoZ:Jet provides a reliable means for connecting user devices thereby, optimize operational efficiencies and provide competitive advantage to the end product. Figure 2 represents the integration of monoZ:Jet with a host device.

Features

• Global connectivity supporting
  • LTE CAT.M1: B1/2/3/4/5/8/12/13/18/19/20/25/26/27/28/66\
  • NB-IoT: B1/2/3/4/5/8/12/13/17/18/19/20/25/28/66
• 2 x u.FL connector for external cellular antenna, GPS antenna
• USB/UART for host interaction
• Operating Temperature: -20 °C to 60 °C
• Nano SIM
• Weight: 10 grams

Board Layout
